Plise perde

  1. Width: 3050mm.
  2. Pleat height: 15-80 mm adjusted by touchscreen
  3. Maximum folding speed: 60 pleats/minute and adjustable
  4. Voltage: AC 380V (3 phases)or customized
  5. Heating power: 30kW
  6. Recommended temperature control range: ambient-180℃
  7. Air working pressure: 0.6mpa
  8. Knife height, gap between upper and lower knife, knife angle are all adjusted by touchscreen
  9. Heating plate height is adjusted by manual with screw rod
  10. Independent temperature control for the upper and the lower
  11. Upper knife driver: 4 groups
  12. Lower knife driver: 4 groups
  13. Servo motor quantity: 1.5kW*4pcs and 0.75kW*1pcs
  14. Machine weight: 2900kg
  15. Machine size: L4200*W1800*H1660mm

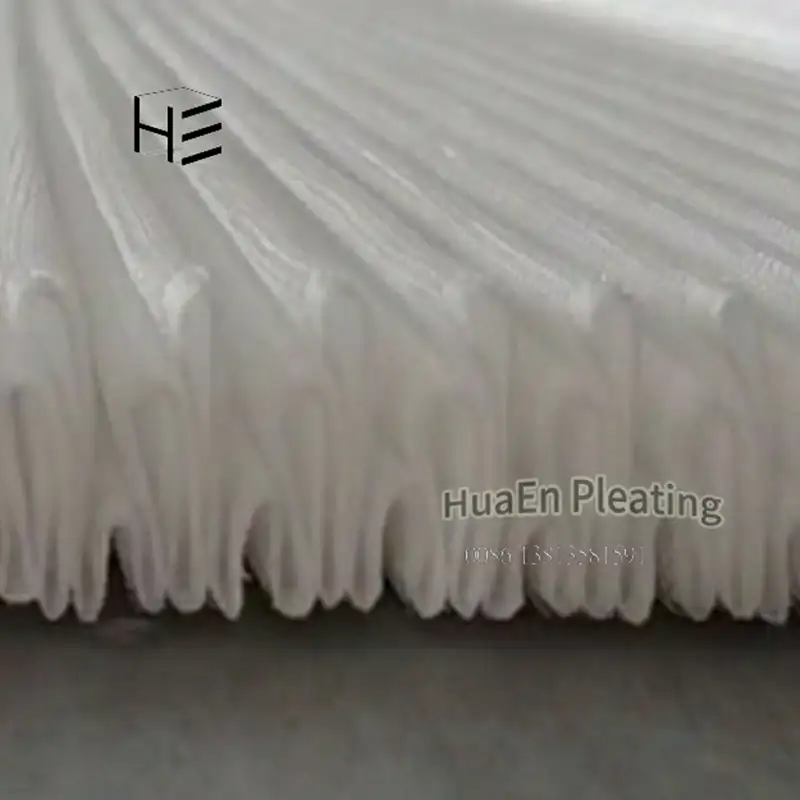

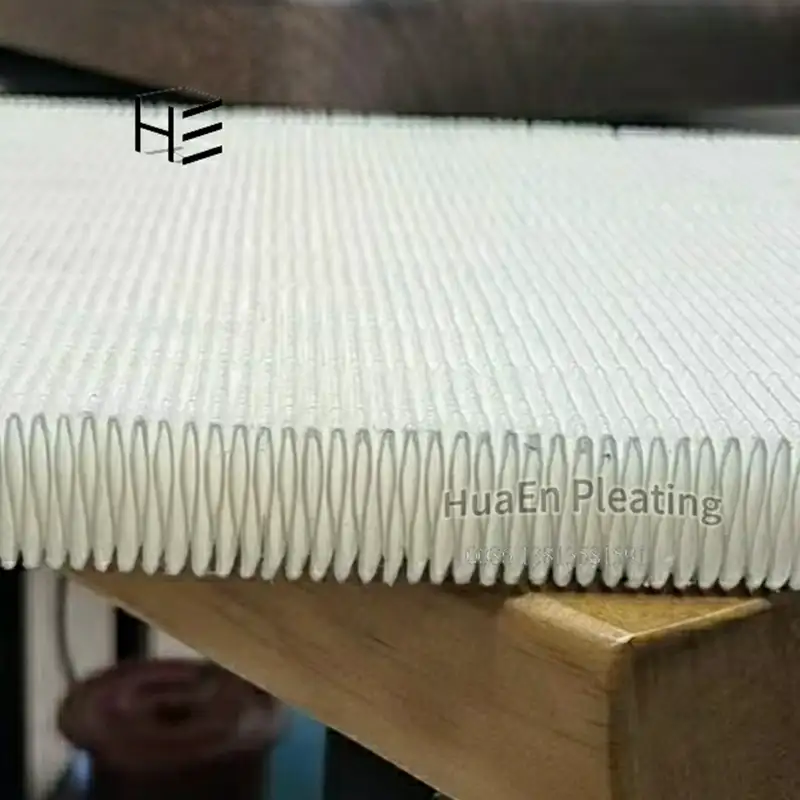

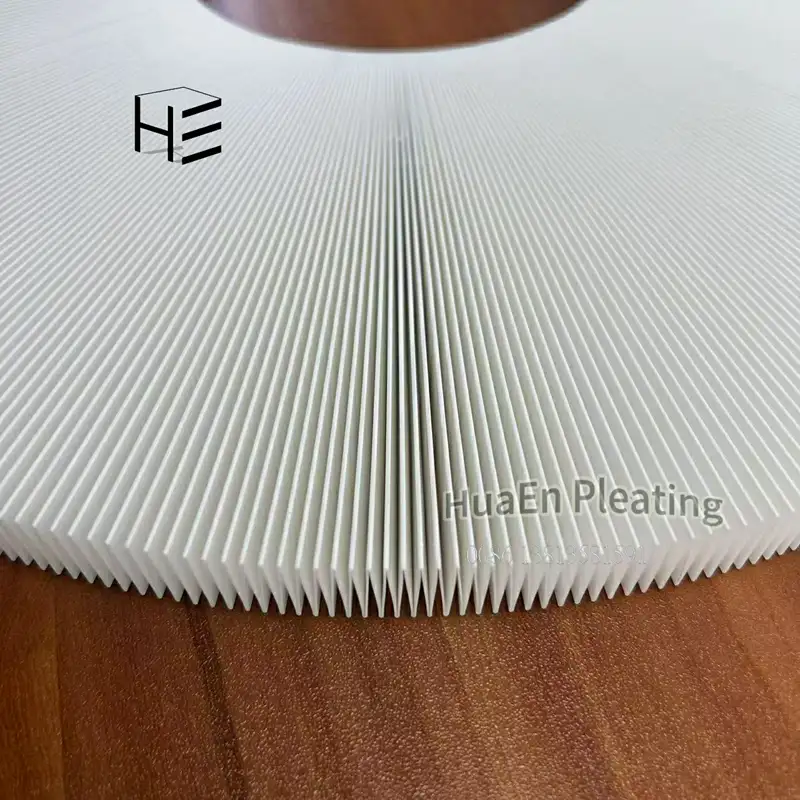

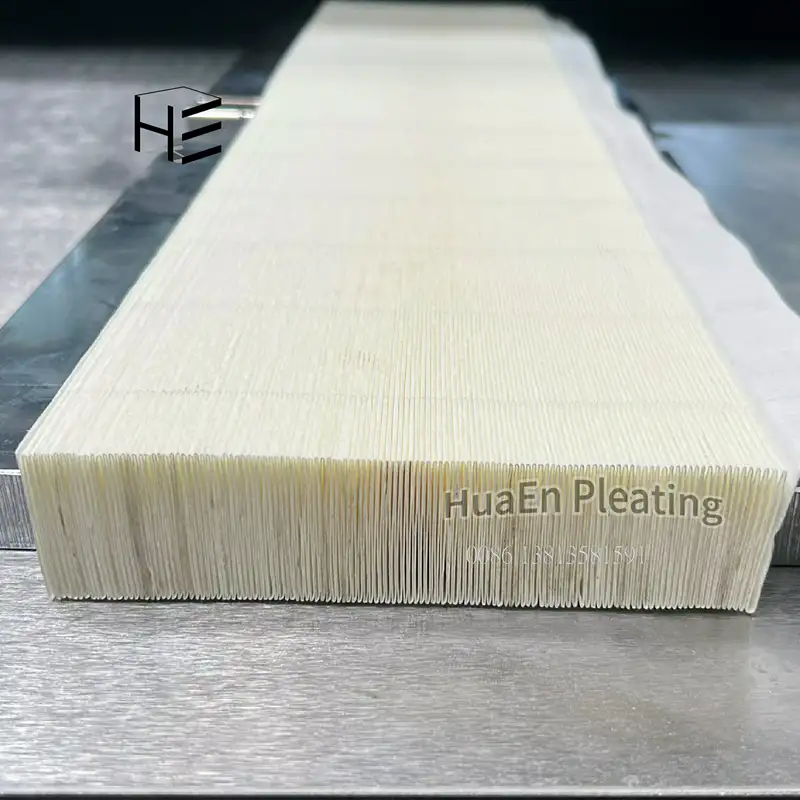

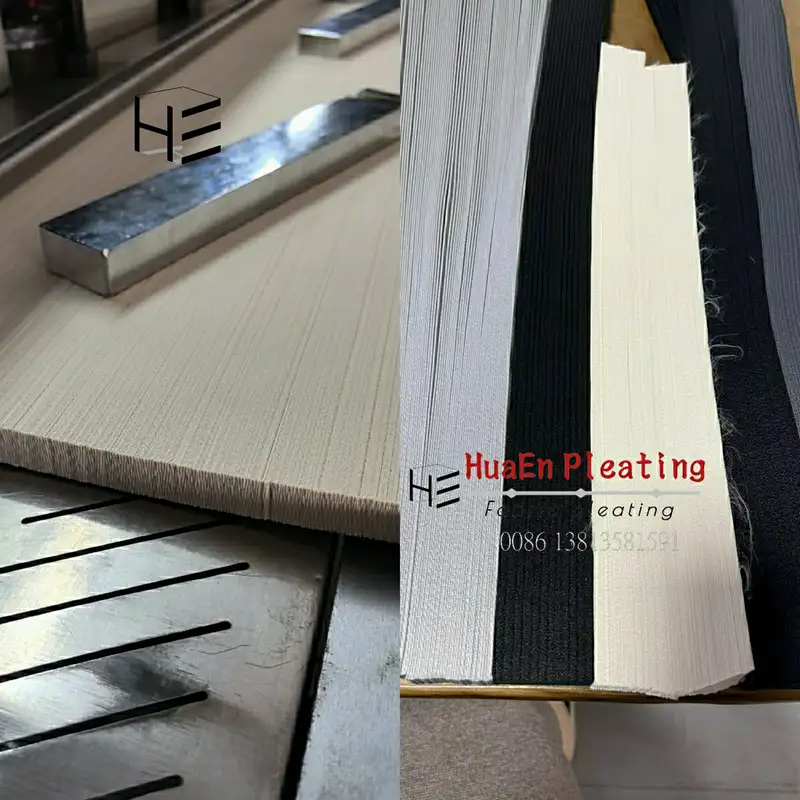

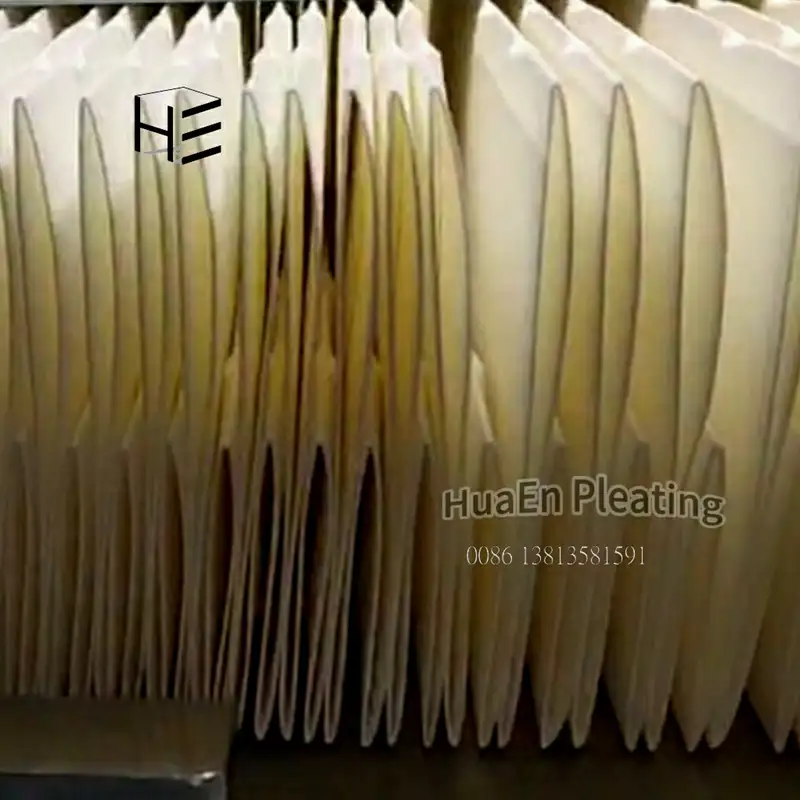

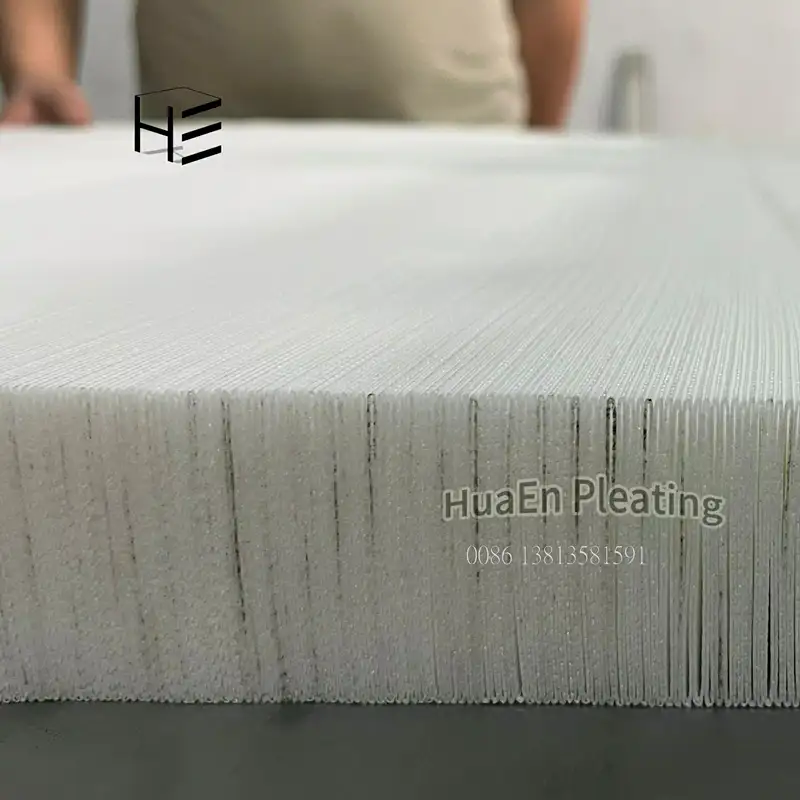

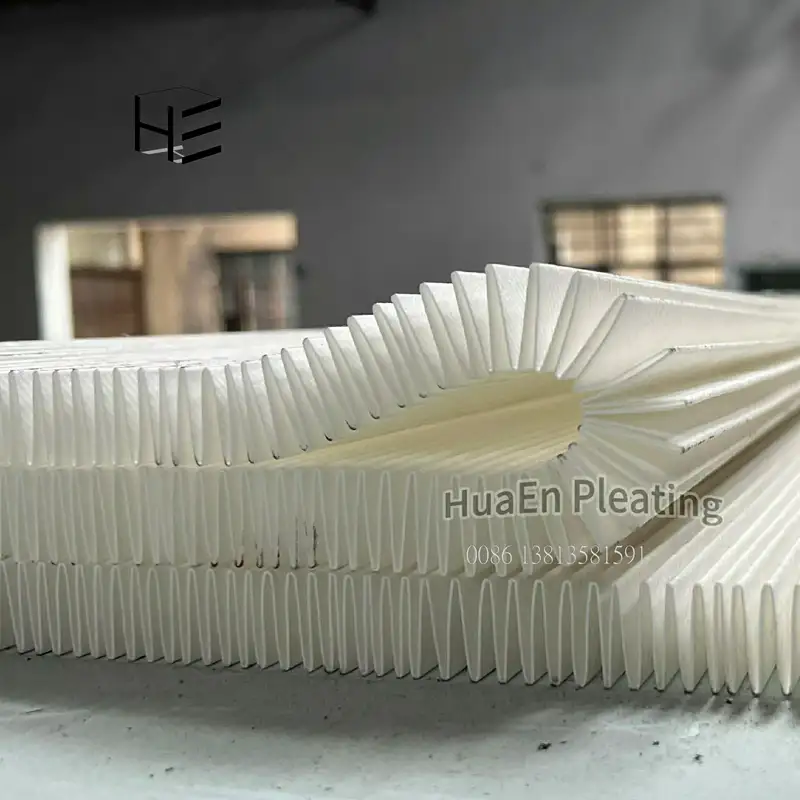

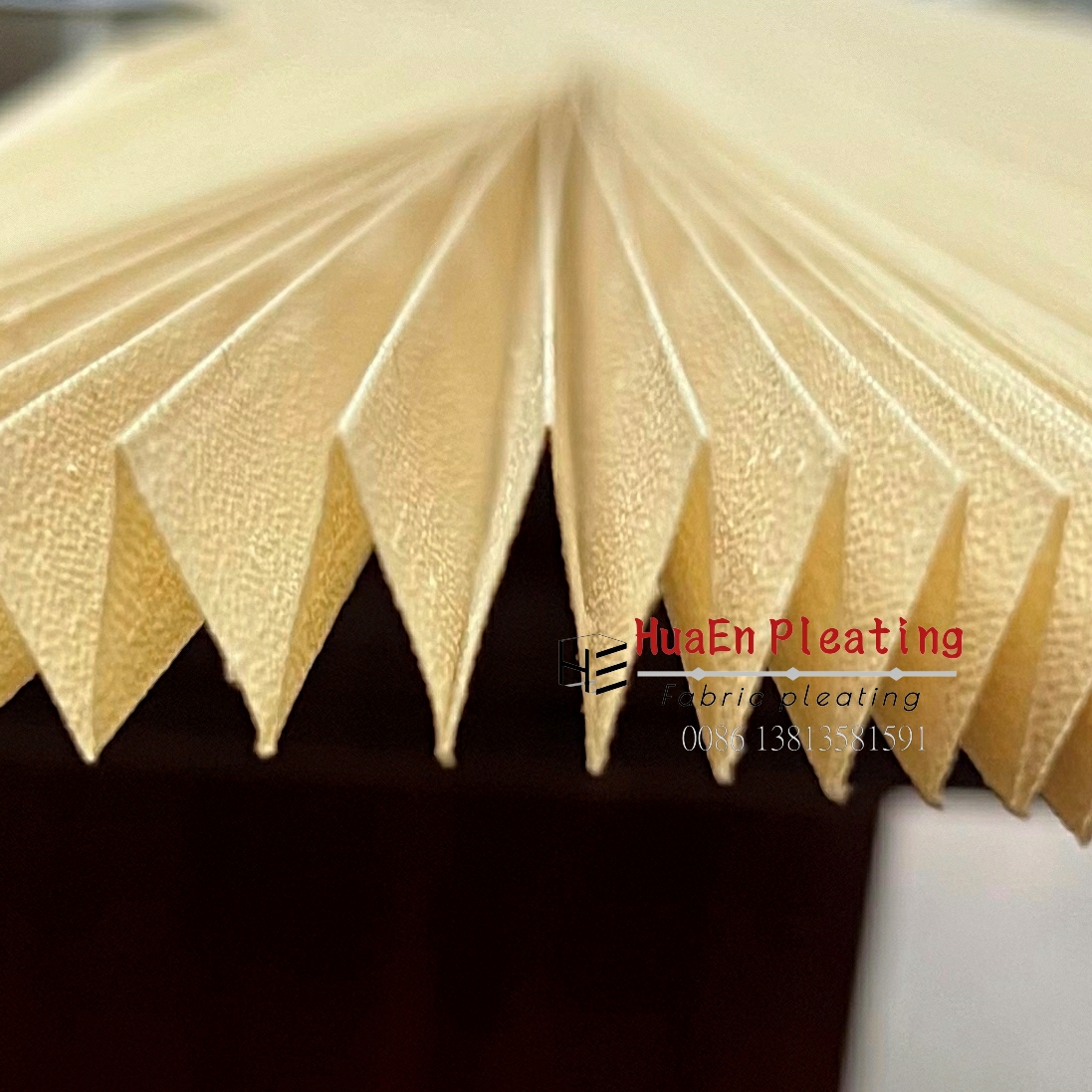

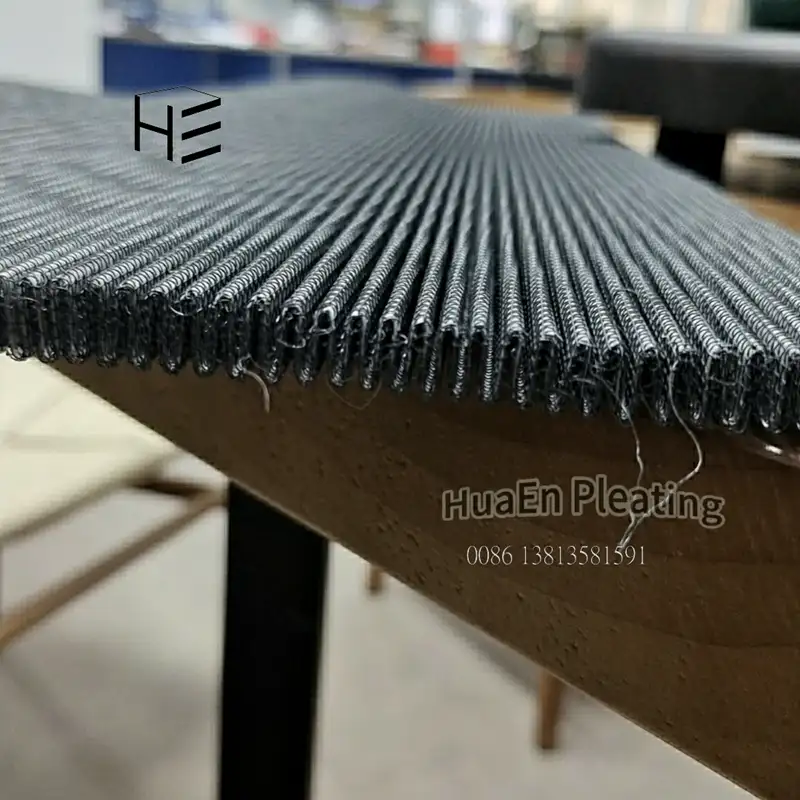

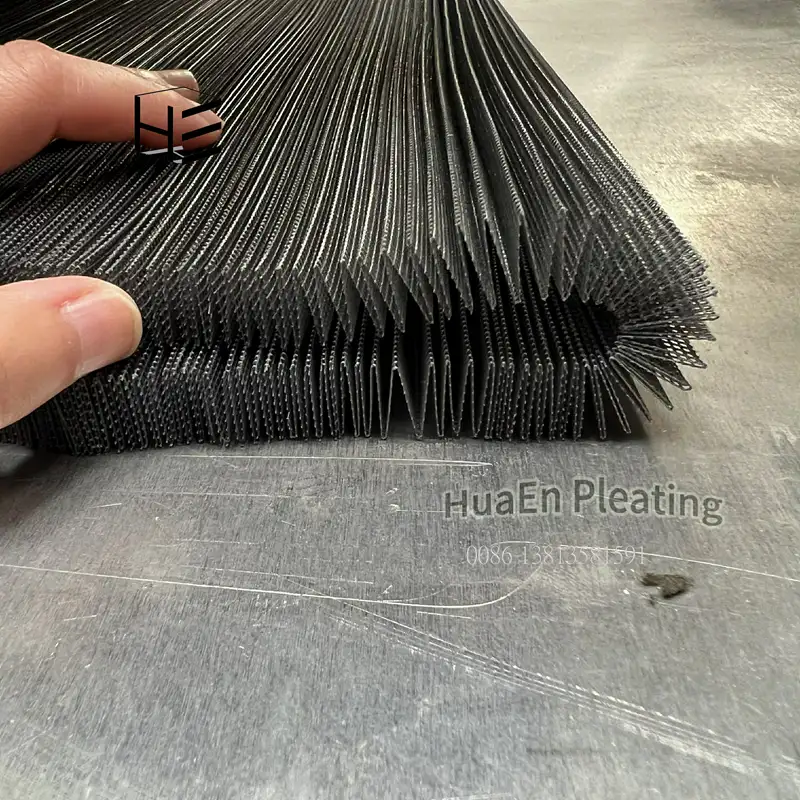

  16. Final pleat shape: M type, N type, W type, etc.
  • Description

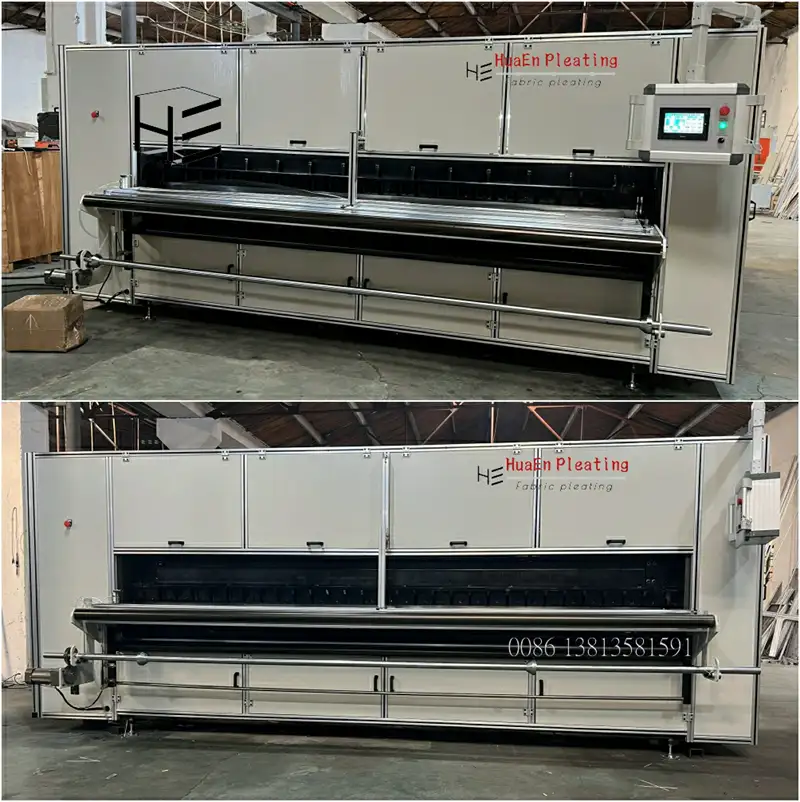

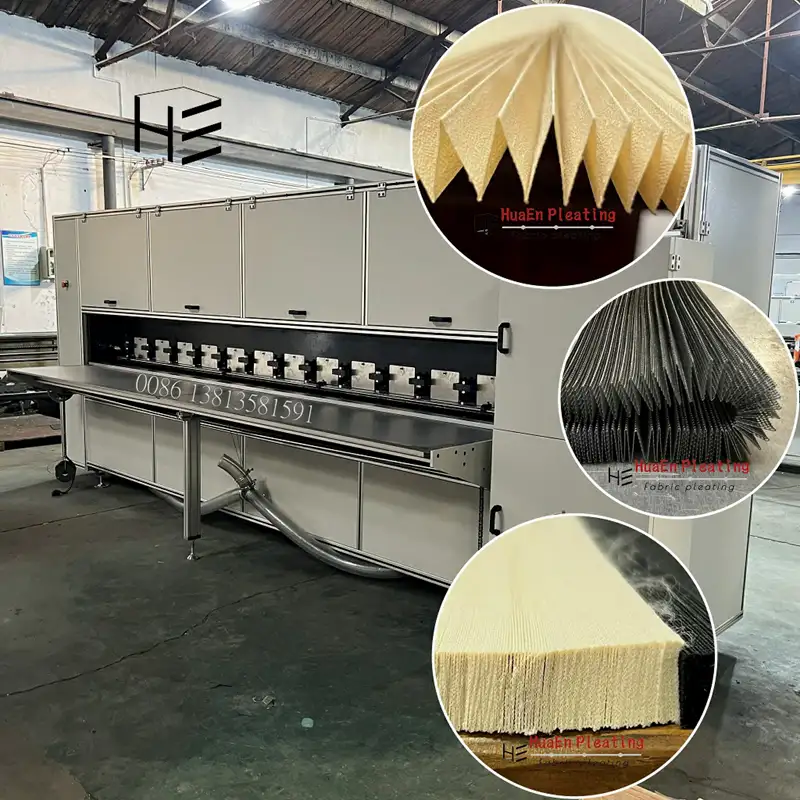

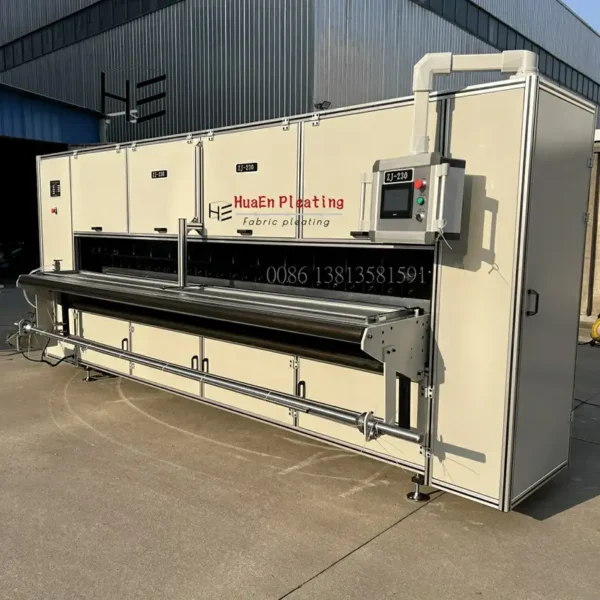

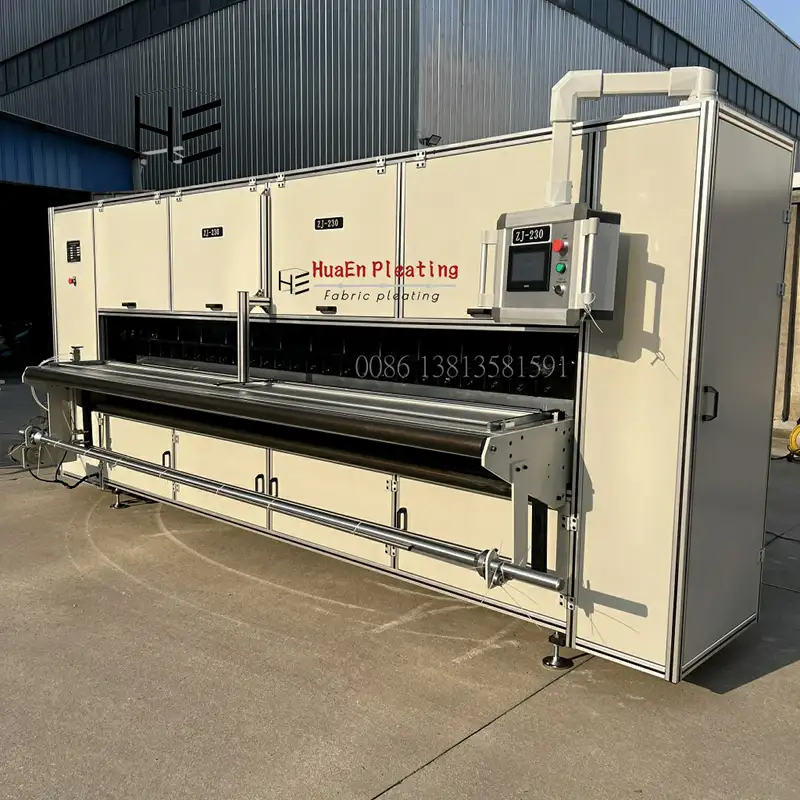

Double blade pleating machine consists of five sets servo systems and two blades moving up-down in turns producing blinds at a speed of 60-100m hourly. The blinds height ranges from 14mm to 35mm.
