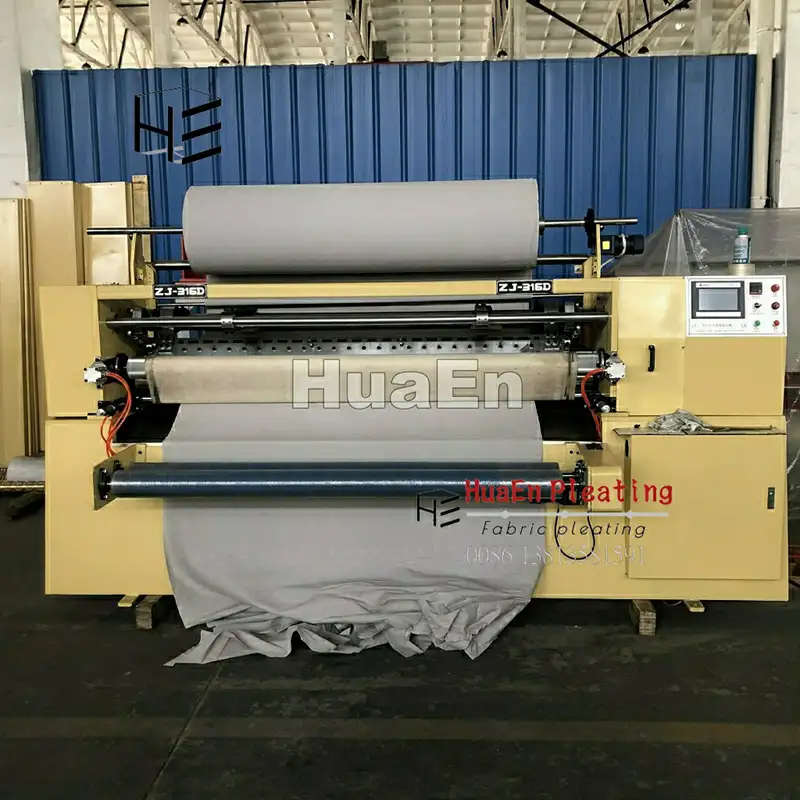

Smart plisse

Max. pleating width: 1600mm

Max. pleating speed: 100m/h

Pleat width: 1mm-100mm

Motor power: 1.5kW+0.75kW+ Servo motor 2.2kW

Heating power: 10kW

Heating agent: oil

Size: 3150*1600*1800mm



  • Description

Another mode of fantasy plisse machine but less applications on garment. Unlike ZJ-217 fantasy plisse machine, this machine is equipped with only upper blade to push the fabric into tiny designs under higher speed of the knife movement leftwards and rightwards. The heating agent is oil to guarantee the heat-setting well done for the super speed.

Plisse patterns are differed by the formulas on touchscreen and applying another blade.
